Efficient Electric Lift Walkie Straddle Stacker for Pallet Handling | MXEM

Efficient Electric Lift Walkie Straddle Stacker for Pallet Handling | MXEM

Regular price $3,841.00 USD
Regular price Sale price $3,841.00 USD
Sale Sold out

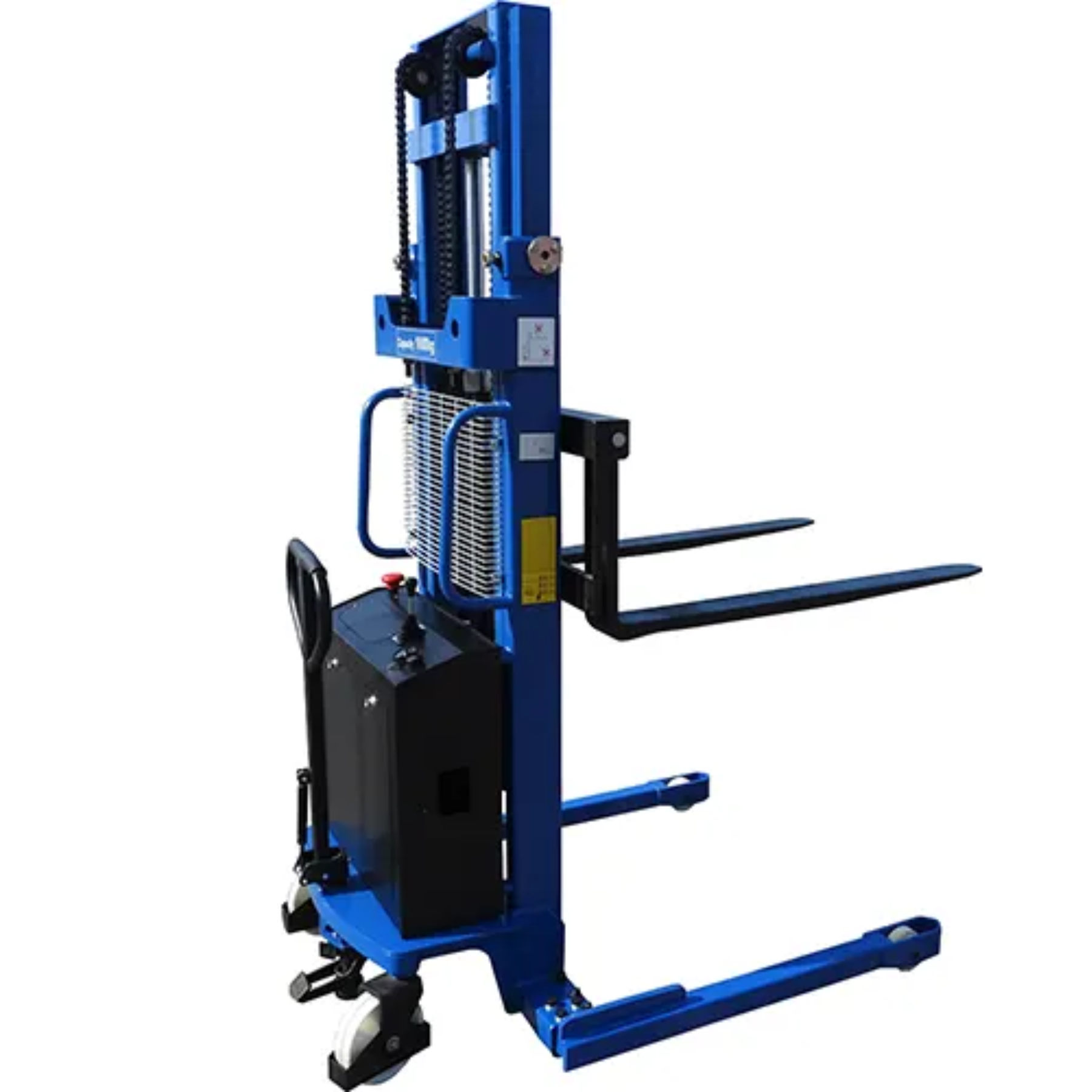

Elevate Your Material Handling with the MXEM Walkie Straddle Stacker

In the realm of pallet handling, the MXEM manually pushed walkie behind straddle stacker with electric lift emerges as a cost-effective and efficient solution, particularly for tasks requiring moderate lifting frequency. This versatile equipment is adept at handling a variety of material handling applications, making it an indispensable tool for businesses looking to optimize their operations.

Versatility for Various Applications

One of the key strengths of the MXEM stacker lies in its flexibility. It’s an excellent choice for loading and unloading multiple pallets from semi-trucks, but its utility doesn’t end there. The MXEM stacker doubles as a mobile work positioner and is highly effective in stacking pallets, streamlining your warehouse operations.

User-Friendly and Efficient Design

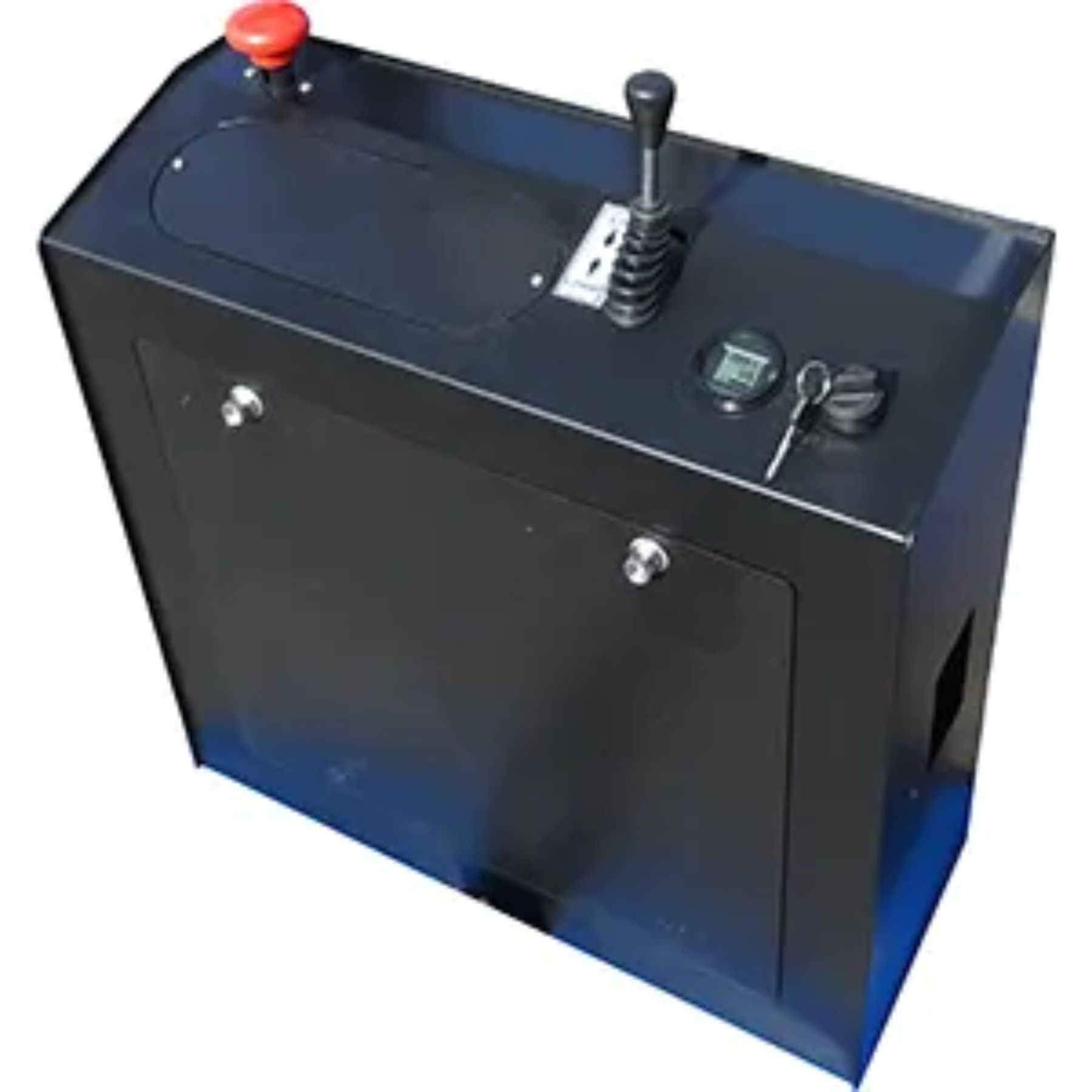

Ease of use is at the heart of the MXEM stacker’s design. The electrically powered lift mechanism is operated via a centrally located control stick, ensuring simplicity and ease in your daily operations. A built-in 12V battery, integral battery charger, amp meter, and keyed on/off switch enhance its functionality, while the foot-actuated floor lock ensures safety and stability during use.

Adjustable Features and Enhanced Safety

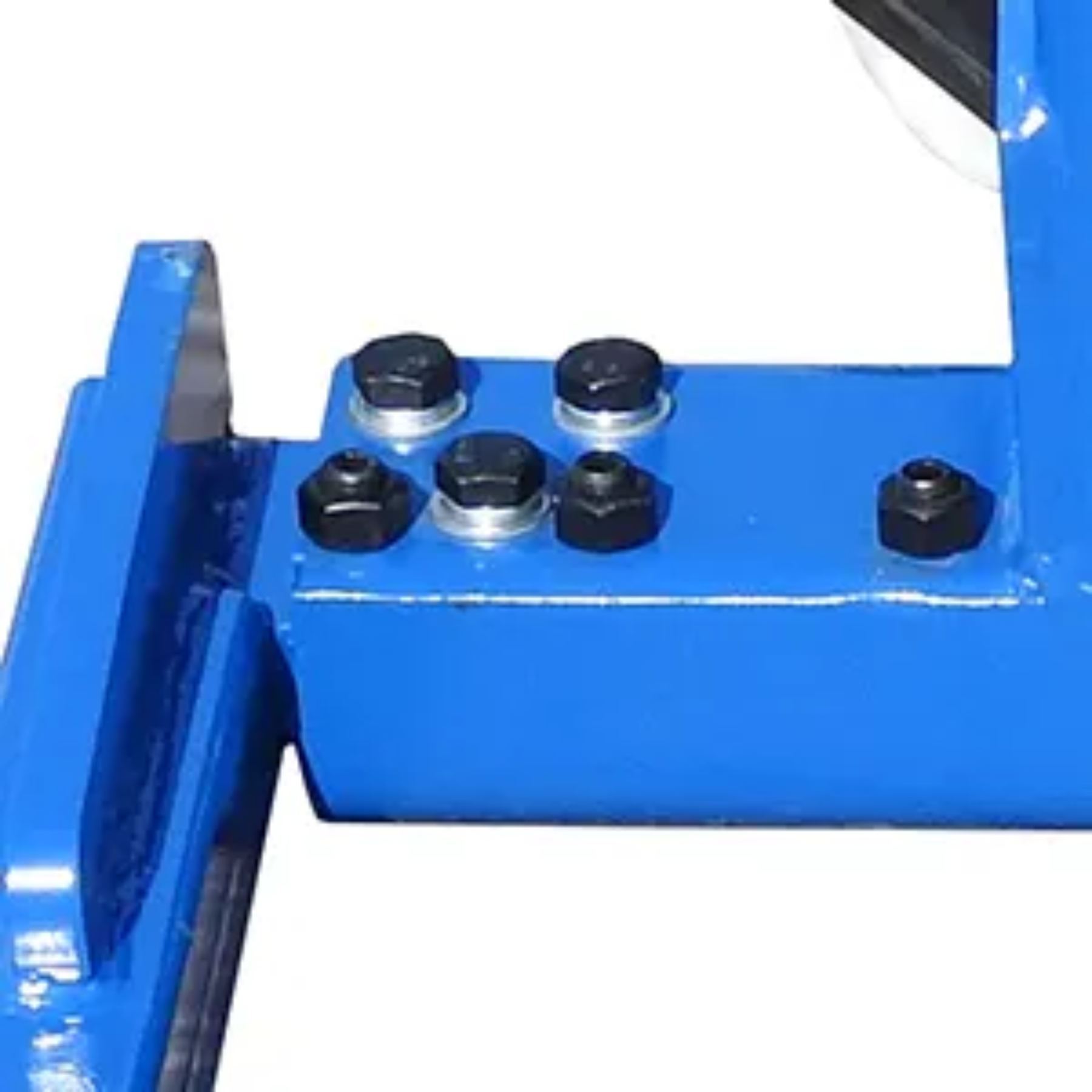

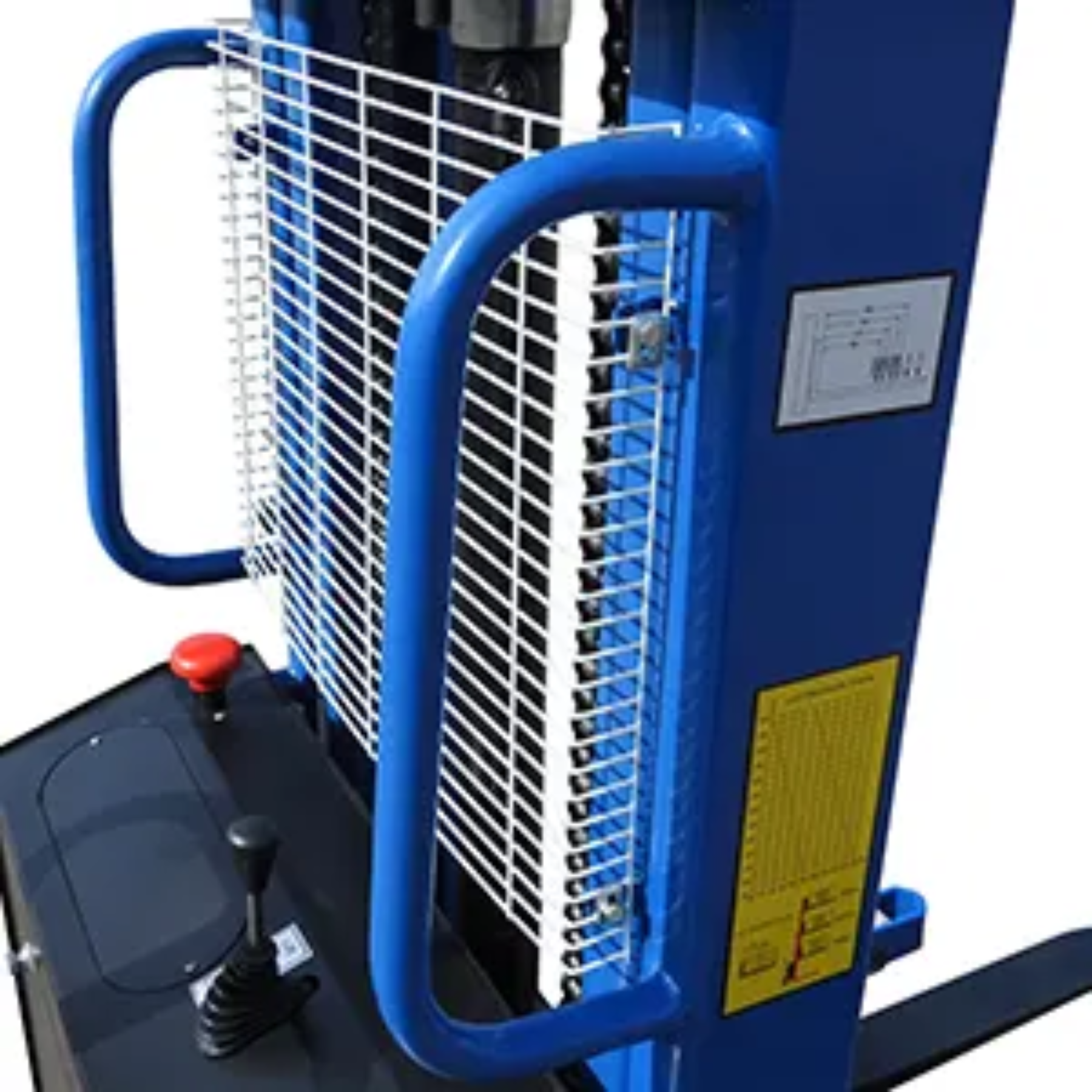

Adaptability is a key feature of the MXEM stacker. With both adjustable forks and straddle legs, it can accommodate different sizes and types of pallets, ensuring a wide range of applications. Safety is also paramount, as evidenced by the operator safety screen, which acts as a protective barrier between the user and the cylinder.

Maneuverability in Tight Spaces

Maneuvering in confined spaces is made effortless with the MXEM stacker. The 7.75"ø phenolic rear steer wheels offer excellent maneuverability, allowing you to navigate narrow aisles and tight corners with ease, thereby improving the efficiency of your material handling processes.


Model Lift
Forks Straddle
Mast Height Weight

OD W L Down Up
MXEM-2200-63 63" 2,200 8.3"-31.5" 3.875" 42" 39"/43"/47"/50.8" 79.5" 79.5" 880
MXEM-2200-96 96" 2,200 8.3"-31.5" 3.875" 42" 39"/43"/47"/50.8" 70" 110" 945

Standard Features

  • Adjustable fork carriage
  • Volt meter
  • Key switch
  • 120 Ah battery
  • 12v 15 Amp amp charger
  • Foot actuated floor lock
  • Pallet forks
  • Positive steer tracking caster
  • Adjustable straddle legs
  • Ergonomic push handle
  • Quick access maintenance cover
  • Entrapped rollers
  • "Lift"/"Lower" stick
  • Operator safety screen
  • Built-in relief valve
  • Pressure compensating control valve
  • Reservoir with integral filter
  • All-welded steel mast
  • Chrome plated lift cylinder rod
  • Heavy-duty lifting chains
  • Integral battery charger
  • Spring loaded steer handle
