WireCrafters

Pallet Racking Back Panel

Pallet Racking Back Panel

$229.33 USD
$229.33 USD
Sale Sold out
Size
Mount Type

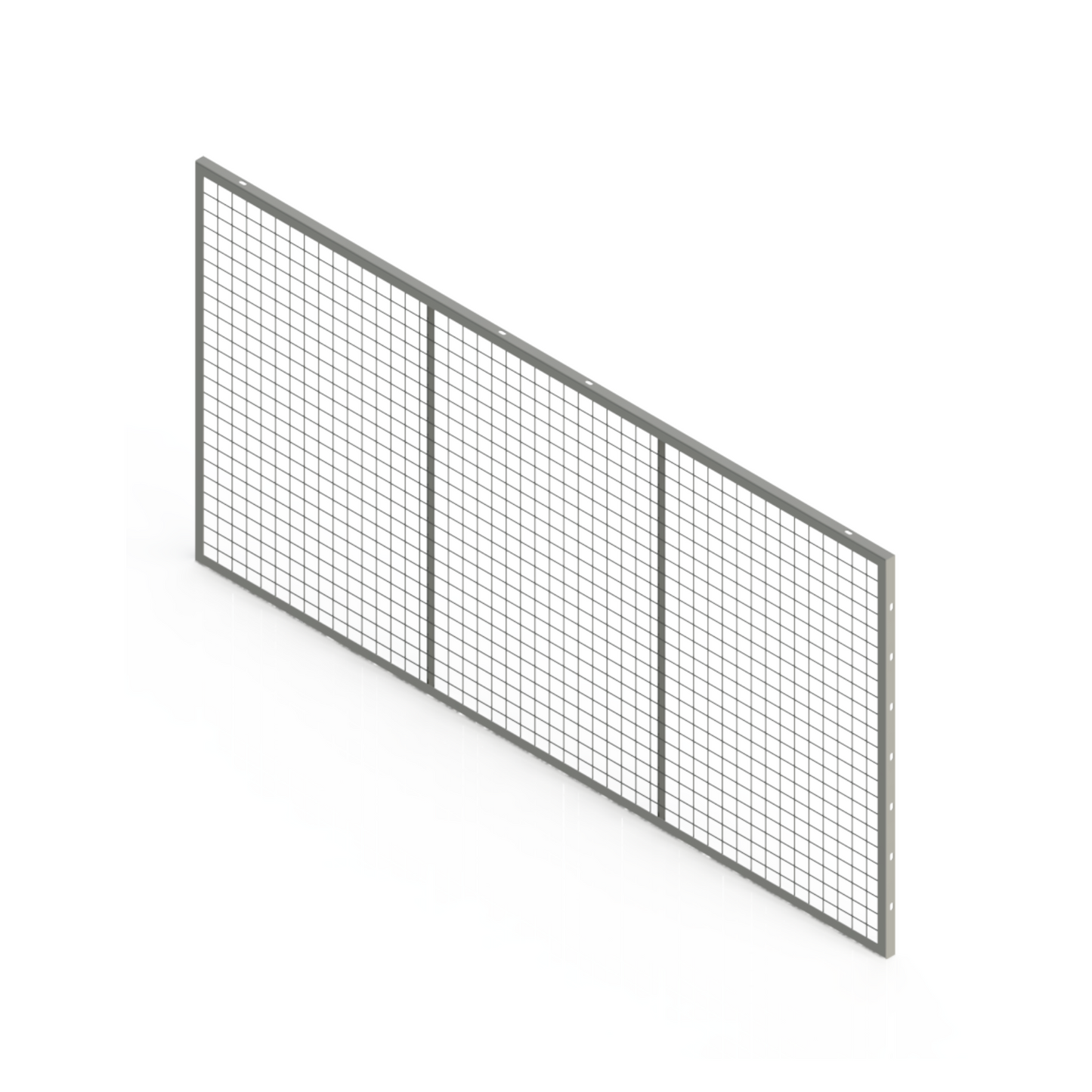

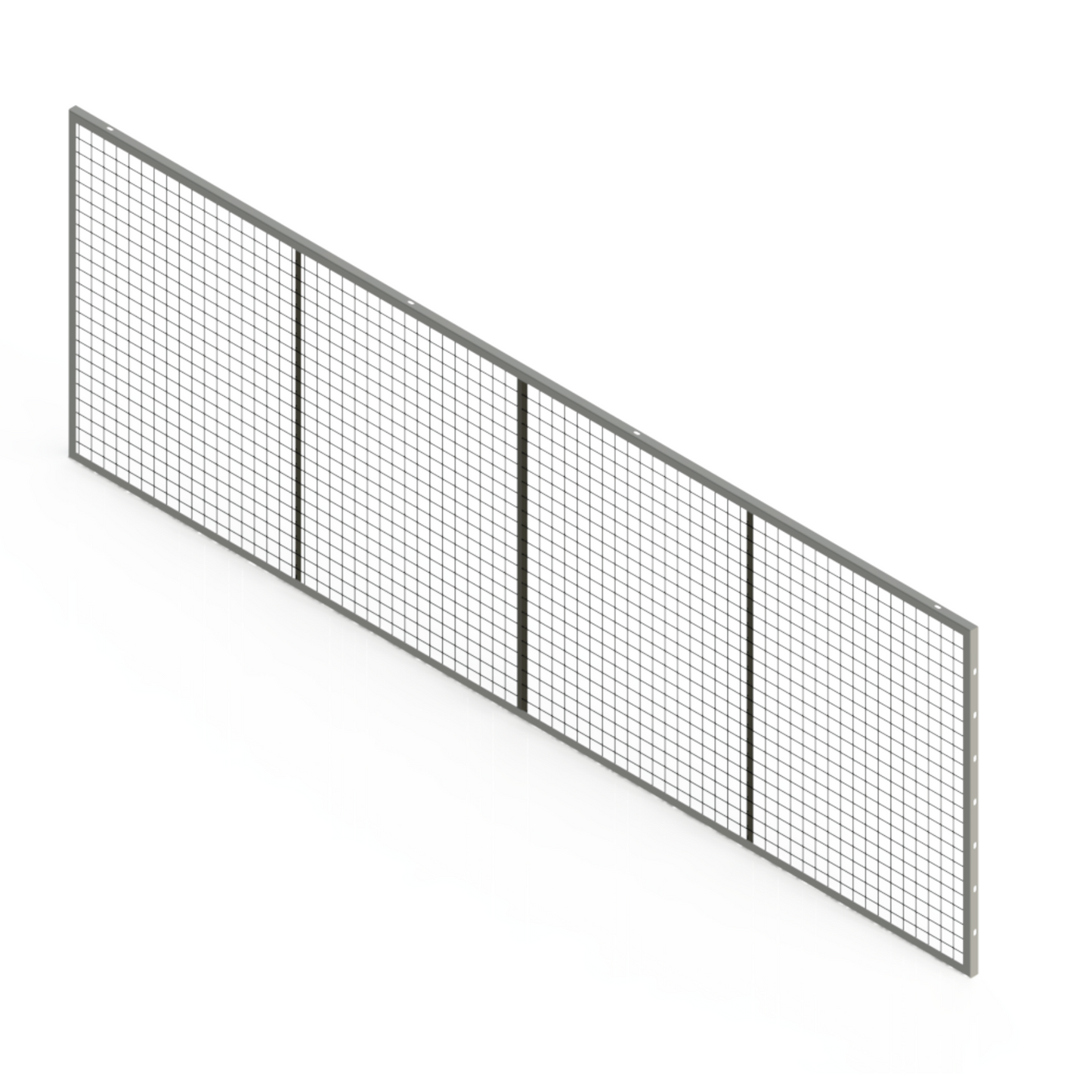

Pallet Racking Back Panel -Panels made of 2" x 2" x 10 gauge welded wire mesh. Options Include: Flush mount brackets, 1-5/8" to 3-1/4" Offset RackBack Mounting Brackets, or 4-3/8" to 6" Offset RackBack Mounting Brackets.  4 clips per pack - 1 pack per panel

  • Standard sized panels 4'-0" or 5'-0" high, match beam length in width.
  • Custom size panels available.
  • Panels made of 2" x 2" x 10 gauge welded wire mesh.
  • Flat steel stiffeners welded behind mesh for extra rigidity.
  • Pallet Rack Backing Panels attach directly to rack with mounting brackets.
  • Multiple attachment points (seven) on ends of each panel.
  • Offset brackets allow for load to overhang rack beams.
  • Stack RackBack® panels one on top of the other to reach desired height.
  • "Above the Top" mounting allows panels to extend above top rack beam.
  • Angle frame design gives installer clear access to hardware, speeding installation.
  • Assembly hardware is inaccessible from the exterior of the partition.
  • Standard 3/8" assembly hardware is the heaviest in the industry.
  • RackBack® Pallet Rack Backing System may be started at the floor or at any level where protection is required.
  • Pallet rack backing panels can be mounted to support posts-if stand alone system desired.
  • Heavier options available upon request
  • Pallet rack back guard
  • Pallet rack wire mesh back panel
  • Pallet rack safety backing
