Document and prioritize
Create a clear record of the locations and components that need attention so the most urgent conditions are not buried in a general punch list.
PALLET RACK REVIEWS AND NEXT STEPS
Pallet Rack Repair and Replacement Planning
Damaged pallet rack needs a clear next step. Two3 Solutions helps document visible concerns and coordinate repair, replacement or reconfiguration planning around the rack system and its use. Based in Wisconsin, we coordinate projects nationwide.
- VISIBLE DAMAGE REVIEW
- REPAIR OR REPLACE GUIDANCE
- RACK PROTECTION OPTIONS
- RECONFIGURATION PLANNING
When Should You Request a Pallet Rack Review?
Request a review after an impact, when components appear damaged or missing, or when the configuration or stored loads have changed. Two3 helps document visible concerns and coordinate the appropriate next step.
The review scope must be agreed for your project. A visual review is not certification, engineering approval or a comprehensive structural assessment. Do not use page guidance as permission to keep using damaged rack; follow facility procedures and obtain direction from the appropriate qualified specialist.
Visible concerns
Review scope
Repair, replace or reconfigure
Carry the plan into the field
What Can a Rack Review Cover?
Uprights and bracing
Look for bends, twists, dents, cracked welds, missing bracing and impact near the lower frame.
Beams and connectors
Review beam damage, connector engagement, safety locks and any signs that components have shifted.
Base plates and anchors
Check the frame-to-floor connection, missing or damaged anchors and visible movement at the base.
Loads and protection
Compare the current configuration and use with available load information, then review where guards or layout changes may reduce repeat impacts.
What Information Helps Us Plan the Work?
Start with the records and photographs you already have. Two3 can help identify information still needed for the review.
- Photos of the affected area and component locations
- Manufacturer identification, component markings and available drawings
- Current rack configuration, beam elevations and available load documentation
- Stored products, pallet loads and changes in use
- Impact history, previous repairs and known concerns
- Access, staging, operating constraints and desired timing
These inputs help define the scope; they do not establish structural suitability or approval to continue using damaged rack.

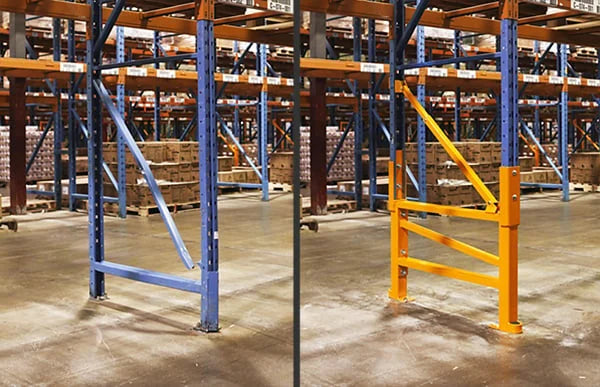

PALLET RACK UPRIGHT REPAIR
Should Damaged Rack Be Repaired or Replaced?
An engineered repair may be an option for some damaged rack; other conditions call for component replacement or reconfiguration. The choice depends on the rack system, condition, connections and actual loading.
Two3 helps document affected locations and coordinate the repair or replacement scope. Have the proposed repair designed or reviewed by a qualified rack engineer and installed by qualified personnel under the approved procedure. The vendor images illustrate repair approaches, not instructions for a facility to perform its own repair.
- Record the rack manufacturer, column profile, damage height, beam elevations and current loads

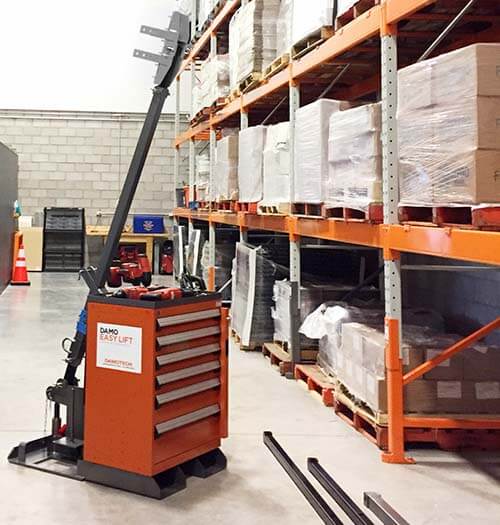

- Confirm the affected area's unloading and isolation requirements before repair work begins
- Verify the completed repair against the approved design and loading documentation
MATCH THE REPAIR TO THE CONNECTIONS

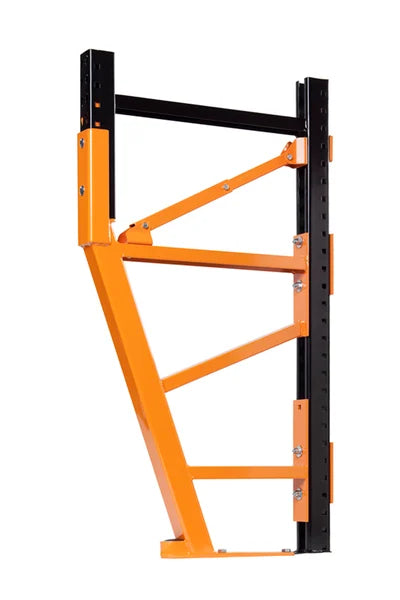

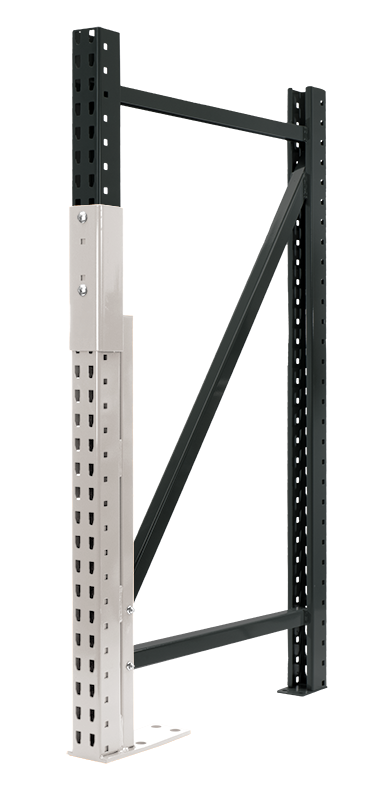

Front-column and sloped-frame repairs need different details
Front-column and sloped-frame repairs require details matched to the existing geometry, connections and loading. Beam attachment points, brace connections and aisle clearances are inputs to technical review.
Do not select a repair assembly from a product photograph or assume components are interchangeable. The repair provider and qualified engineer should confirm suitability and capacity for the actual installed configuration. A repair does not automatically increase the rack’s load rating.
- Confirm beam punch pattern and connector compatibility before ordering
- Coordinate brace attachment, footplate, anchors and available aisle space
- Have the repair provider or engineer confirm capacities for the actual installed configuration
