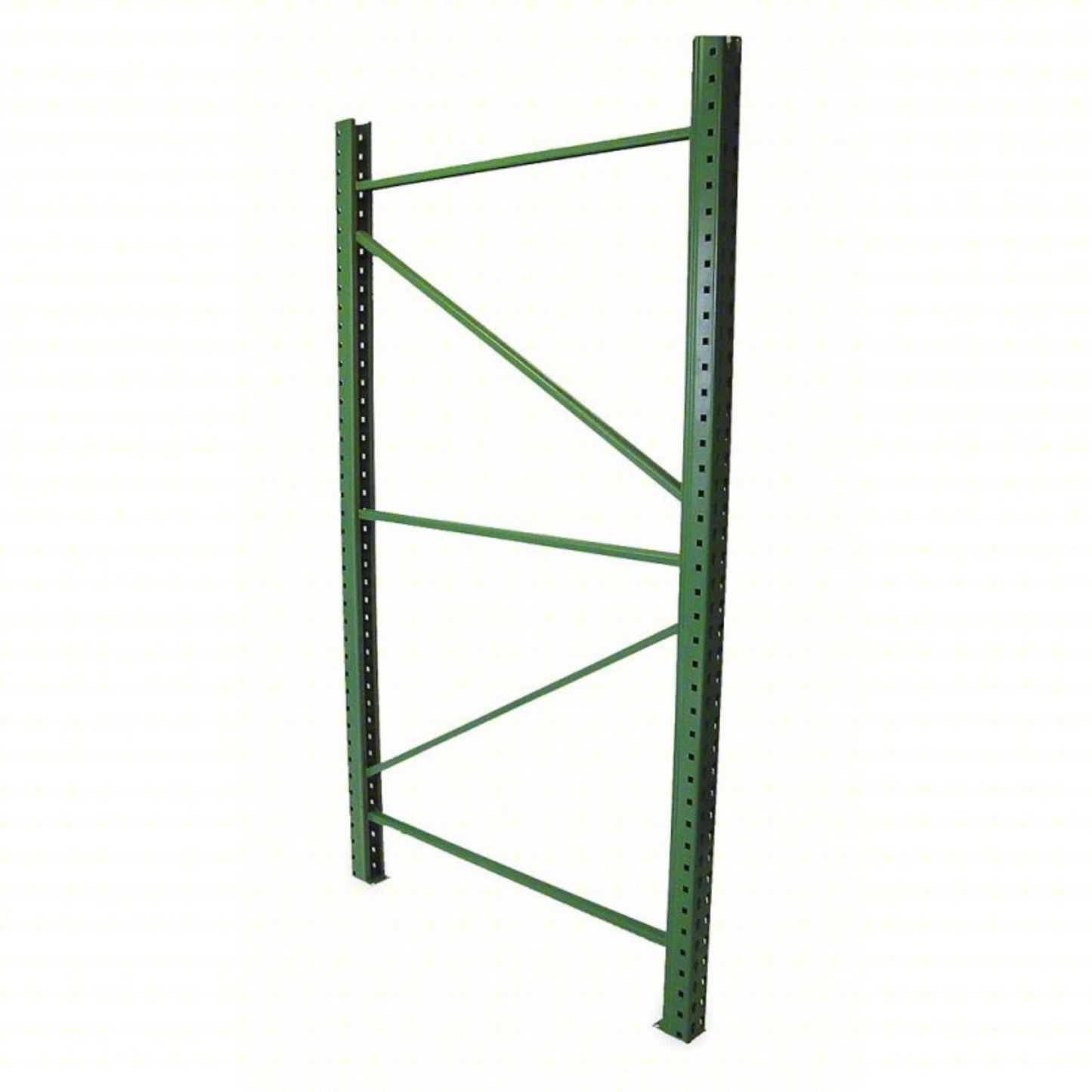

Industrial Warehouse Uprights - 3" x 1-5/8 "x 14 ga

UPRIGHT MINIMUM QUANTITY THREE

PRODUCT FEATURES:

• Industry standard design: Our beam attachments have two adjacent teardrop punches on 2” centers (industry standard), so beams are compatible with most other pallet rack systems. Teardrop style punches are found in 93% of rack systems.
• Made in the U.S. with 100% U.S. Steel
• Available now: Our quick-ship items ship within 48 hours.
• Color options: Standard colors are green uprights and orange beams. Reach out to us for custom colors
• IU18: 3" x 1-5/8 "x 14 ga

For vertical beam spacing greater than 96” please contact us.
• Beam spacing (vertically) is measured from top of beam to top of beam
starting from the floor to the top of the first beam and so on.
• Uprights and beams constructed of HSLA prime, U.S. made, high-strength
steel.
• Standard baseplates are 4” x 4.25” x 0.13”. Oversized baseplates available
upon request.
• PE stamped drawings with calculations available for projects with
permitting requirements.
• Capacities for static loads only

NOTE: Contact us for install quotes and and special requests.
